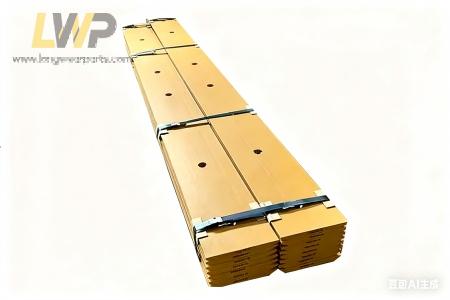

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

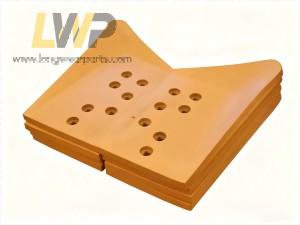

Long wear parts product line includes a comprehensive array of cutting edges & end bits compatible with all makes and models of bulldozers .Long wear parts offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit .
Part number
Alternative number
Description
Dimension
Hole
9W3928
9W-3928
Center
1.750 x 16.000 x 35.750
6
9W6657
9W-6657
End
1.750 x 16.000 x 33.813
5
1359625
135-9625
Center
2.375 x 16.000 x 35.750
6
8E2086
8E-2086
End
2.375 x 16.000 x 33.813
5
8E4199
8E-4199
Cast End Bit RH
3.919 x 19.993 x 28.991
7
8E4198
8E-4198
Cast End Bit LH
3.919 x 19.993 x 28.991
7
8E4541
8E-4541
Cast End Bit RH
4.809 x 18.421 x 28.418
7
8E4542
8E-4542
Cast End Bit LH
4.809 x 18.421 x 28.418
7
2755941
275-5941
Extra Extended Wear Cast End Bit RH
4.602 x 18.925 x 28.346
7
2755942
275-5942
Extra Extended Wear Cast End Bit LH
4.602 x 18.925 x 28.346
7
8E4199HC
8E-4199HC
Hot Cup End Bit RH
2.000 x 19.000 x 29.000
7
8E4198HC
8E-4198HC
Hot Cup End Bit LH
2.000 x 19.000 x 29.000
7
8E4541HC
8E-4541HC
Hot Cup End Bit RH
2.250 x 19.000 x 29.000
7
8E4542HC
8E-4542HC
Hot Cup End Bit LH
2.250 x 19.000 x 29.000
7
7T4689
7T-4689
Hot Cup End Bit RH
2.500 x 18.000 x 27.594
7
7T4688
7T-4688
Hot Cup End Bit LH
2.500 x 18.000 x 27.500
7
7T4689-24
7T-4689-24
Hot Cup End Bit RH
3.000 x 18.000 x 27.500
7
7T4688-24
7T-4688-24
Hot Cup End Bit LH
3.000 x 18.000 x 27.500
7
1003131
100-3131
Level Cut End Bit RH
1.750 x 16.000 x 27.000
7
1003132
100-3132
Level Cut End Bit LH
1.750 x 16.000 x 27.000
7
1003133
100-3133
Level Cut End Bit RH
2.375 x 16.000 x 27.000
7
1003134
100-3134
Level Cut End Bit LH
2.375 x 16.000 x 27.000
7
1368755
136-8755
Level Cut End Bit RH
3.000 x 14.250 x 27.000
7
1368754
136-8754
Level Cut End Bit LH
3.000 x 14.250 x 27.000
7
