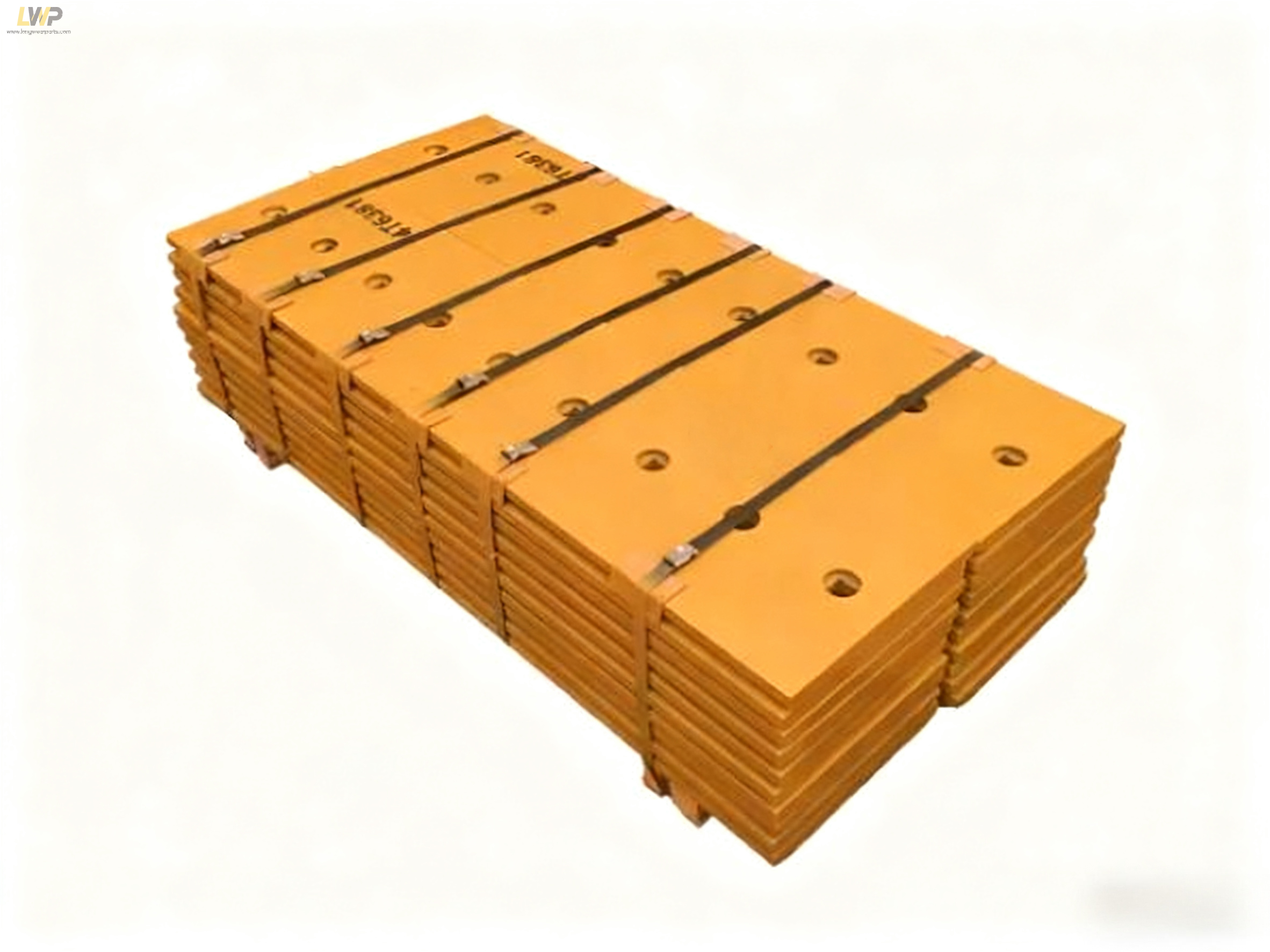

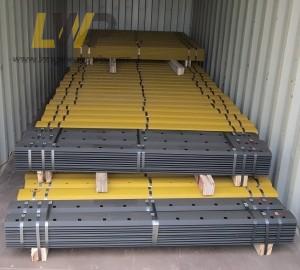

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of cutting edges & end bits compatible with all makes and models of bulldozers .Long wear parts offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit .
Part number
Alternative number
Description
Dimension
Hole
4T6238
4T-6238
Center
1.000 x 10.000 x 47.250
8
9J1477
9J-1477
Cast End Bit RH
1.125 x 11.997 x 18.996
7
9J1478
9J-1478
Cast End Bit LH
1.125 x 11.997 x 18.996
7
3G8317
3G-8317
Hot Cup End Bit RH
1.250 x 13.000 x 21.625
7
3G8318
3G-8318
Hot Cup End Bit LH
1.250 x 12.986 x 21.553
7
3G8287
3G-8287
Hot Cup End Bit RH
1.625 x 13.000 x 22.000
7
3G8288
3G-8288
Hot Cup End Bit LH
1.625 x 13.000 x 22.000
7
4T6239
4T-6239
Level Cut End Bit RH
1.000 x 10.000 x 18.000
7
4T6240
4T-6240
Level Cut End Bit LH
1.000 x 10.000 x 18.000
7
4T8089
4T-8089
Level Cut End Bit RH
1.125 x 10.000 x 19.125
7
4T8090
4T-8090
Level Cut End Bit LH
1.125 x 10.000 x 19.125
7
4T6532
4T-6532
Center
1.000 x 10.000 x 35.875
6
4J8843
4J-8843
Cast End Bit RH
1.125 x 11.997 x 18.996
7
4J8844
4J-8844
Cast End Bit LH
1.125 x 11.997 x 18.996
7
4J8843HD
4J-8843HD
Cast End Bit RH
1.126 x 12.430 x 21.231
7
4J8844HD
4J-8844HD
Cast End Bit LH
1.126 x 12.430 x 21.231
7
3G8293
3G-8293
Hot Cup End Bit RH
0.875 x 13.125 x 21.625
7
3G8294
3G-8294
Hot Cup End Bit LH
0.875 x 13.125 x 21.625
7
3G8315
3G-8315
Hot Cup End Bit RH
1.250 x 11.530 x 20.910
7
3G8316
3G-8316
Hot Cup End Bit LH
1.250 x 11.530 x 20.910
7
4T6505
4T-6505
Level Cut End Bit RH
1.000 x 10.000 x 18.580
7
4T6506
4T-6506
Level Cut End Bit LH
1.000 x 10.000 x 18.580
7
