Products information 1) Material: Low alloy steel / Forging 2) Surface: Standard yellow or as your request 3) Hardness: 480-530 HBW 4) Impact Strength: ≥22J (at 25°C) 5) Package: packed in plywood cases 6) Application :used for protecting the bucket from wear and tear.

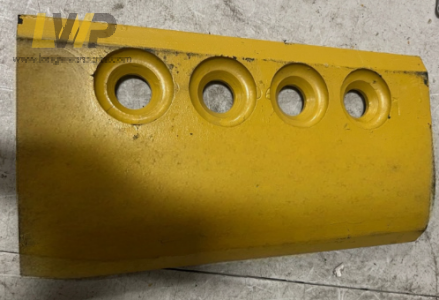

Our aftermarket replacement Caterpillar Edge Protector/Upper Wear Plates are heavy-duty weld-on sacrificial wear component installed on the top upper surface of excavator and loader buckets. Unlike lip shrouds that protect the cutting edge and heel shrouds for rear corners, the Upper Wear Plate is specially designed to resist continuous top-side material sliding, ore backflow abrasion, and repeated cargo friction during loading, dumping and stockpiling cycles.
Caterpillar 4 holes upper wear plates 264-2096/264-2097/264-2098 are commonly used together with Half arrow 264-2090/264-2091/264-2092;
Caterpillar 3 holes upper wear plates 286-2143/286-2141/286-2142 are commonly used together with Half arrow 116-7460/116-7461/116-7462;
Caterpillar 4 holes upper wear plates 294-8883/294-8884/294-8885 are commonly used together with Half arrow 275-5938/275-5936/275-5937;
Caterpillar 4 holes upper wear plates 587-6970/587-6971/587-6972 are commonly used together with Half arrow 195-7190/195-7191/195-7192;
Our Caterpillar Edge Protector/Upper Wear Plates have below advantages:
1. Eliminates bucket top deck wear-through and structural grooving damage.
2. Prevents expensive top plate cutting, patching and rebuilding maintenance.
3. Reduces equipment downtime caused by bucket structural failure.
4. Improves overall bucket durability under high-abrasion mining conditions.
5. Replaceable sacrificial plate protects original bucket and extends bucket service life.
Our Caterpillar Wear parts include Half Allow/Upper Wear Plate/Top Cover/Wear Protection/Lip Shroud/Wing Shroud/Heel Shroud/Side Bar Protector/Side Cutter/Side Protector/Corner Protector/Corner Guard and so on .Welcome to contact us for more detailed information !
| Model | Part number | Alternative number | Description |
| WHEEL LOADER 988H | 2642096 | 264-2096 | Caterpillar Upper Wear Plate Center-4 Holes |
| 2642097 | 264-2097 | Caterpillar Upper Wear Plate-R-4 Holes | |
| 2642098 | 264-2098 | Caterpillar Upper Wear Plate-L-4 Holes | |
| WHEEL LOADER 980K | 2862143 | 286-2143 | Caterpillar Upper Wear Plate Center 3 Holes |
| 2862141 | 286-2141 | Caterpillar Upper Wear Plate R 3 Holes | |
| 2862142 | 286-2142 | Caterpillar Upper Wear Plate L 3 Holes | |
|
WHEEL LOADER 993K 992K 993 992 |
2948883 | 294-8883 | Caterpillar Upper Wear Plate Center 4 Holes |
| 2948884 | 294-8884 | Caterpillar Upper Wear Plate R 4Holes | |
| 2948885 | 294-8885 | Caterpillar Upper Wear Plate L 4 Holes | |
| WHEEL LOADER 988K | 3691895 | 369-1895 | Upper Wear Plate/Corner Cover Plate-3 Holes |
| 3691896 | 369-1896 | Upper Wear Plate/Corner Cover Plate-3 Holes | |
|
WHEEL LOADER 993K 993 |
3256677 | 325-6677 | Caterpillar Upper Wear Plate 5 Holes |
| 3256678 | 325-6678 | Caterpillar Upper Wear Plate R 5 Holes | |
| 3256679 | 325-6679 | Caterpillar Upper Wear Plate L 5 Holes | |
| cat395,WHEEL LOADER 992,993 | 5876970 | 587-6970 | Caterpillar Upper Wear Plate(4Holes)-Weld |
| 5876971 | 587-6971 | Caterpillar Upper Wear Plate(4Holes)-Weld | |
| 5876972 | 587-6972 | Caterpillar Upper Wear Plate(4Holes)-Weld |
