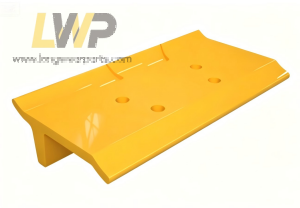

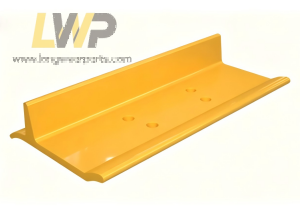

Products information 1)Track Shoe material: High-Manganese Wear-Resistant Alloy Steel 2)Surface hardness: HB 320–380, impact-resistant, flex-resistant ; 3)Package: packed in strong pallets 4)Application: Track shoes provide flotation and traction for the machine and protection for the link assembly.
Long wear parts@ supply high quality Caterpillar Track Shoe, Caterpillar Track Pad, Caterpillar Grouser Shoe,Caterpillar Master Shoe, Caterpillar Track Plate,Caterpillar Teja Empalme, Caterpillar Connector.
We offer four types of track shoes:
1. Single Grouser Track Shoes: Offer maximum traction and excellent resistance to sinking; suitable for bulldozers, wetlands, swamps, and steep slopes. Not recommended for use on paved surfaces or in applications involving frequent turning.
2. Double Grouser Track Shoes: Provide a balanced combination of performance and durability, making them suitable for general-purpose applications across various conditions. Not recommended for use in ultra-soft silt or extremely hard rock environments.
3. Triple Grouser Track Shoes: Feature high load-bearing capacity, offer the smoothest ride, and provide superior resistance to sinking; suitable for large excavators, hard rock mining sites, and wetlands. Not recommended for applications requiring extreme traction or for use on bulldozers.
4. Flat Track Shoes: Protect the ground surface and ensure a smooth ride; suitable for urban environments and concrete pavements. Not recommended for use in muddy conditions, soft ground, or on slopes.
Long wear parts@ Caterpillar Track Shoe Shoe,Caterpillar Teja Empalme are available various models, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung equipments.
Model
Part number
Alternative No.
Width
Description
D6M
1061613
106-1613
560mm
Caterpillar Track Shoe
D6M D6N D5H
1061615
106-1615
710mm
Caterpillar Track Shoe
D6M D6N D5H
1061616
106-1616
865mm
Caterpillar Track Shoe
D5R D5H D6M D6N D5R2 D6N
1170616
117-0616
610mm
Caterpillar Track Shoe
E200B,E320
0964308
096-4308
600mm
Caterpillar Track Shoe
E240,E320
0964311
096-4311
800mm
Caterpillar Track Shoe
E200B , 320BL
0967576
096-7576
600mm
Caterpillar Track Shoe
E323D
1616304
161-6304
800mm
Caterpillar Track Shoe
375A /365B/5080
1664931
166-4931
610mm
Caterpillar Track Shoe
365B/365C/374F/375A
1664933
166-4933
900mm
Caterpillar Track Shoe
D6D
6Y6291
6Y-6291
508mm
Caterpillar Track Shoe
3304
9W7984
9W-7984
590mm
Caterpillar Track Shoe
D5M
1196073
119-6073
560mm
Caterpillar Track Shoe
3116
8E4972
8E-4972
610mm
Caterpillar Track Shoe
D4K
1986991
198-6991
635mm
Caterpillar Track Shoe
D3
6S8814
6S-8814
305mm
Caterpillar Track Shoe
D3B
6S8815
6S-8815
356mm
Caterpillar Track Shoe
D3
6S8817
6S-8817
406mm
Caterpillar Track Shoe
D3K
6S8824
6S-8824
635mm
Caterpillar Track Shoe
D4G
1986988
198-6988
406mm
Caterpillar Track Shoe
