Products information 1) Material: Low alloy steel / Forging 2) Surface: Standard yellow or as your request 3) Hardness: 480-530 HBW 4) Impact Strength: ≥22J (at 25°C) 5) Package: packed in plywood cases 6) Application :used for protecting the bucket from wear and tear.
Our aftermarket replacement Caterpillar Upper Wear Plates are heavy-duty weld-on sacrificial wear component installed on the top upper surface of excavator and loader buckets. Unlike lip shrouds that protect the cutting edge and heel shrouds for rear corners, the Upper Wear Plate is specially designed to resist continuous top-side material sliding, ore backflow abrasion, and repeated cargo friction during loading, dumping and stockpiling cycles.
Caterpillar 4 holes upper wear plates 229-7045/229-7046/229-7047 are commonly used together with Half arrow 109-2675/109-2676/109-2677;
Caterpillar 4 holes upper wear plates 307-5600/307-5601/307-5602 are commonly used together with Half arrow 275-5460/275-5461/275-5462;
Caterpillar 4 holes upper wear plates 257-1778/257-1779/257-1781 are commonly used together with Half arrow 257-1782/257-1783/257-1784;
Caterpillar 4 holes upper wear plates 292-9462/292-9463/292-9464 are commonly used together with Half arrow 195-7180/195-7181/195-7182;
Caterpillar 4 holes upper wear plates 195-7096/195-7097/195-7098 are commonly used together with Half arrow 275-5470/275-5471/275-5472;
In mining and heavy aggregate operations, the bucket upper deck suffers severe consistent abrasion from falling rock, gravel and bulk materials. This wear plate acts as a replaceable protective barrier to prevent thinning, grooving and premature penetration of the bucket top steel structure.
Our Caterpillar Wear parts include Half Allow/Upper Wear Plate/Top Cover/Wear Protection/Lip Shroud/Wing Shroud/Heel Shroud/Side Bar Protector/Side Cutter/Side Protector/Corner Protector/Corner Guard and so on .Welcome to contact us for more detailed information !
| Part number | Alternative number | Description |
| 2297045 | 229-7045 | Caterpillar Upper Wear Plate Center 4 Holes |
| 2297046 | 229-7046 | Caterpillar Upper Wear Plate R 4Holes |
| 2297047 | 229-7047 | Caterpillar Upper Wear Plate L 4 Holes |
| 3075600 | 307-5600 | Caterpillar Upper Wear Plate Center 4 Holes |
| 3075601 | 307-5601 | Caterpillar Upper Wear Plate R 4Holes |
| 3075602 | 307-5602 | Caterpillar Upper Wear Plate L 4 Holes |
| 2571778 | 257-1778 | Caterpillar Upper Wear Plate Center-4Holes |
| 2571779 | 257-1779 | Caterpillar Upper Wear Plate-R-4Holes |
| 2571781 | 257-1781 | Caterpillar Upper Wear Plate-L-4Holes |
| 2929462 | 292-9462 | Caterpillar Upper Wear Plate Center 4 Holes |
| 2929463 | 292-9463 | Caterpillar Upper Wear Plate R 4Holes |
| 2929464 | 292-9464 | Caterpillar Upper Wear Plate L 4 Holes |

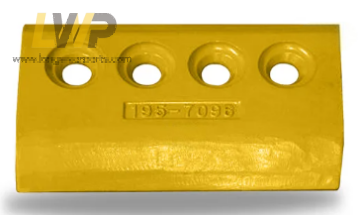

| 1957096 | 195-7096 | Caterpillar Upper Wear Plate Center 4 Holes |

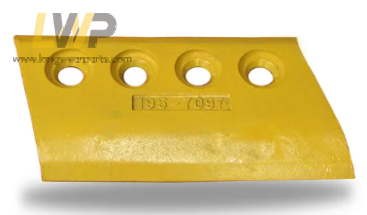

| 1957097 | 195-7097 | Caterpillar Upper Wear Plate R 4Holes |
| 1957098 | 195-7098 | Caterpillar Upper Wear Plate L 4 Holes |
| 5114934 | 511-4934 | Top Covers/Upper Wear Plate Center-2Holes |
| 2862051 | 286-2051 | Top Covers/Upper Wear Plate Center-2Holes |
