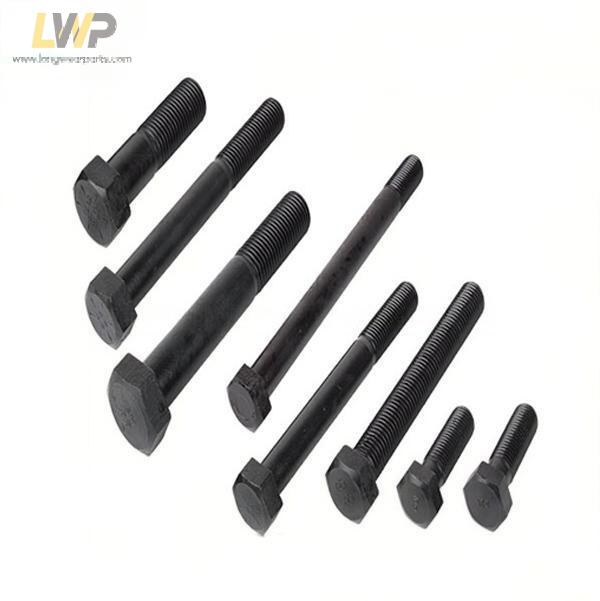

Products information 1) Material: 40Cr 2) Surface: black oxygen, galvanization or as your request 3) Hardness: 36~42HRC 4) Grade: 12.9 5) Impact Strength: ≥12~15J (at 25°C) 6) Package: boxes packed in Plywood Cases 7) Application : Caterpillar Split link bolt used in a wide variety of applications across all Caterpillar machinery,they are used to secure the links to the undercarriage frame of heavy machinery like excavators, bulldozers, and tracked loaders.
We supply track bolt,split link bolt,segment bolt and nuts for Caterpillar, Komatsu, Hyundai,Volvo,JCB,Hitachi undercarriages. Our undercarriage spare parts and track systems are manufactured with the finest material for durability, reliability and practicality.
Bolt
Diameter
Part number
Description
Dimension
Length
7/8
6V1724
Split Link bolt
7/8 X 3 25/32
3 25/32
8S0395
Split Link bolt
7/8 X 4 3/4
4 3/4
188-5640
Split Link bolt
7/8 X 4 3/4
4 3/4
6V1725
Split Link bolt
7/8 X 5 5/64
5 5/64
1
6V1727
Split Link bolt
1 x 4 21/64
4 21/64
7T2283
Split Link bolt
1 x 4 27/32
4 27/32
Split Link bolt
1 x 5 21/64
5 21/64
8S1723
Split Link bolt
1 x 5 1/2
5 1/2
1 1/8
7T0999
Split Link bolt
1 1/8 X 5 1/4
5 1/4
7T0998
Split Link bolt
1 1/8 X 6 1/2
6 1/2
1 3/8
6T8521
Split Link bolt
1 3/8 X 6
6
6T8520
Split Link bolt
1 3/8 X 7 1/4
7 1/4
