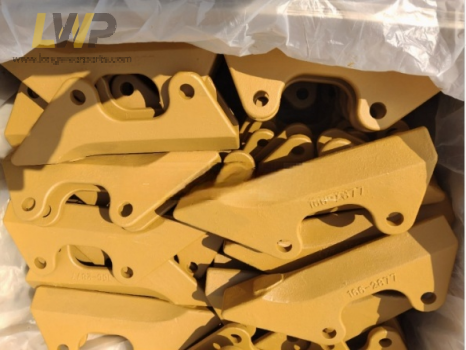

Caterpillar Sidebar Shroud/Pin-on Sidebar 166-2877/125-0800/1U0740

Products information
1) Material: Low alloy steel / Forging
2) Surface: Standard yellow or as your request
3) Hardness: 480-530 HBW
4) Impact Strength: ≥22J (at 25°C)
5) Package: packed in plywood cases
6) Application :used for protecting the bucket from wear and tear.

Product Description:

Our aftermarket replacement Caterpillar Sidebar Protector/Caterpillar Sidebar Shroud/wing shroud/bucket tooth guard is a heavy-duty pin-mounted vertical wear protection part designed exclusively for Caterpillar wheel loader and excavator bucket sidebar structures. Different from bolt-on flat side cutters that protect only the outer edge, our pin-on sidebar covers the vertical high-wear sidebar zone of the bucket, which endures continuous side friction, material washout, lateral impact and rock gouging during loading, grading and stockpiling operations.

Caterpillar sidebar protector 166-2877, the sidebar thickness is 40mm ,use side protection device pin 132-0998/132-0999;

Caterpillar sidebar protector 1U0740, the sidebar thickness is 50mm ,use side protection device pin 133-0738/107-8559;

Caterpillar sidebar protector 8E3814, the sidebar thickness is 70mm ,use side protection device pin 8E4708/4T4707;

Caterpillar sidebar protector 125-0800, the sidebar thickness is 65mm ,use side protection device pin 8E4708/4T4707;

Caterpillar sidebar protector 486-9068, the sidebar thickness is 30mm ,use side protection device pin 138-0006/463-1401;

Caterpillar sidebar protector 304-5853, the sidebar thickness is 50mm ,adopt hammerless CapSure fixation;

Caterpillar sidebar protector 304-5854, the sidebar thickness is 50mm ,adopt hammerless CapSure fixation;

Caterpillar sidebar protector 329-5946, the sidebar thickness is 50mm ,adopt hammerless CapSure fixation;

Our aftermarket sidebar shroud /wing shroud/bucket tooth guard can solve below headache issues :
1. Eliminates vertical sidebar washout and grooving wear that side cutters cannot solve.
2. Pin-lock structure avoids bolt loosening and falling off during heavy vibration.
3. Preserves bucket side geometry, maintains stable digging penetration and production efficiency.
4. Replaceable pin-on protector avoids expensive sidebar cutting and rebuilding.
5. Reduces fleet maintenance downtime and long-term bucket operating costs.

Our Caterpillar Wear protection parts include Half Arrow/Upper Wear Plate/Top Cover/Segment/Wear Protection/Lip Shroud/Wing Shroud/Heel Shroud/Side Bar Protector/Side Cutter/Side Protector/Corner Protector/Corner Guard and so on. Welcome to contact us for more detailed information !

Part number	Alternative number	Description
1662877	166-2877	Caterpillar Wing Shround/Sidebar Protector
1U0740	1U-0740	Caterpillar Wing Shround/Sidebar Protector
8E3814	8E-3814	Caterpillar Wing Shround/Sidebar Protector
1250800	125-0800	Caterpillar Wing Shround/Sidebar Protector
4869068	486-9068	Caterpillar Wing Shround/Sidebar Protector
3045853	304-5853	Caterpillar Capsure Wing Shround/Sidebar Protector
3045854	304-5854	Caterpillar Capsure Wing Shround/Sidebar Protector
3295946	329-5946	Caterpillar Capsure Wing Shround/Sidebar Protector
