Products information 1) Material: Low alloy steel / Forging 2) Surface: Standard yellow or as your request 3) Hardness: 480-530 HBW 4) Impact Strength: ≥22J (at 25°C) 5) Package: packed in plywood cases 6) Application :used for protecting the bucket from wear and tear.

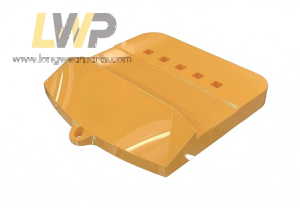

Our aftermarket replacement Caterpillar Half Arrow Lip Shrouds are a premium Ground Engaging Tool (GET) designed to protect the base edge of your loader or excavator bucket from premature wear and structural damage. Positioned between bucket tooth adapters, these cast segments shield the exposed bucket lip from abrasive materials, extending the service life of both the bucket and its GET system. The Half Arrow design offers an optimal balance of protection, penetration, and productivity.
Caterpillar bolt-on 4 holes half arrow segments 257-1782/257-1783/257-1784 are mainly used in models EXCAVATOR 390D 390F and WHEEL LOADER 988H 988K, the segment thickness are 45mm ;
Caterpillar bolt-on 4 holes half arrow segments 307-1636/307-1638/ 307-1639 are mainly used in models EXCAVATOR 390D 390F and WHEEL LOADER 988H 988K, the segment thickness are 45mm;
Caterpillar bolt-on 4 holes half arrow segments 275-5470/275-5471/ 275-5472 are mainly used in models WHEEL LOADER 988F,988G,990G,992D,992G, the segment thickness are 75mm;
Caterpillar bolt-on 4 holes half arrow segments 109-2675/109-2676/ 109-2677 are mainly used in models WHEEL LOADER 988F,988G,990G,992D,992G, the segment thickness are 75mm;
Caterpillar bolt-on 3 holes half arrow segments 116-7460/116-7461/ 116-7462 are mainly used in models WHEEL LOADER 980/982/988, the segment thickness are 45mm;
Caterpillar bolt-on 3 holes half arrow segments 109-9080/109-9081/ 109-9082 are mainly used in models WHEEL LOADER 988F,988G,990G,CAT390,992D,992G, the segment thickness are 45mm;
Caterpillar bolt-on 4 holes half arrow segments 264-2090/264-2091/264-2092 are mainly used in models WHEEL LOADER 990H, the segment thickness are 60mm;
Our Caterpillar Wear parts include Half Allow/Upper Wear Plate/Top Cover/Wear Protection/Lip Shroud/Wing Shroud/Heel Shroud/Side Bar Protector/Side Cutter/Side Protector/Corner Protector/Corner Guard and so on.Welcome to contact us for more detailed information !
| Model | Part number | Alternative number | Description |
|
EXCAVATOR 390D 390F
WHEEL LOADER 988H 988K |
2571782 | 257-1782 | Half Arrow(4Holes) Center |
| 2571783 | 257-1783 | Half Arrow L Segment(4Holes) R | |
| 2571784 | 257-1784 | Half Arrow R Segment(4Holes) L | |
|
EXCAVATOR 390D 390F
WHEEL LOADER 988H 988K |
3071636 | 307-1636 | Half Arrow(4Holes) Ctr--Arm |
| 3071638 | 307-1638 | Half Arrow L Segment(4Holes) R--Arm | |
| 3071639 | 307-1639 | Half Arrow R Segment(4Holes) L--Arm | |
|
WHEEL LOADER 988F,988G, 990G,992D,G
|
2755470 | 275-5470 | Half Arrow(4Holes) Center |
| 2755471 | 275-5471 | Half Arrow L Segment(4Holes) R | |
| 2755472 | 275-5472 | Half Arrow R Segment(4Holes) L | |
|
WHEEL LOADER 988F,988G, 990G,992D,G
|
1092675 | 109-2675 | Half Arrow(4Holes) Center |
| 1092676 | 109-2676 | Half Arrow L Segment(4Holes) R | |
| 1092677 | 109-2677 | Half Arrow R Segment(4Holes) L | |
| WHEEL LOADER 980/982/988 | 1167460 | 116-7460 | Half Arrow(3Holes) Center |
| 1167461 | 116-7461 | Half Arrow L Segment(3Holes) R | |
| 1167462 | 116-7462 | Half Arrow R Segment(3Holes) L | |
|
WHEEL LOADER 988F,G, 990, cat390,992D,G
|
1099080 | 109-9080 | Half Arrow(3Holes) Center |

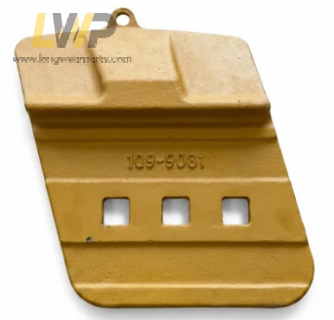

| 1099081 | 109-9081 | Half Arrow L Segment(3Holes) R | |
| 1099082 | 109-9082 | Half Arrow R Segment(3Holes) L | |
| WHEEL LOADER 990H | 2642090 | 264-2090 | Half Arrow(4Holes) Center |
| 2642091 | 264-2091 | Half Arrow L Segment(4Holes) R | |
| 2642092 | 264-2092 | Half Arrow R Segment(4Holes) L |
