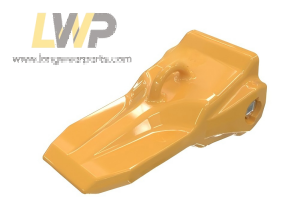

Caterpillar CapSure bucket tooth 459-2180/459-2182/459-2186

Products information
1) Material: Low alloy steel / Forging
2) Surface: Standard yellow or as your request
3) Hardness: 480-520 HBW
4) Impact Strength: ≥18J (at 25°C)
5) Package: packed in plywood cases
6) Application :used in Excavator buckets, Loader bucekts,Diggers,Rippers to  efficiently dig, trench, and break hard ground.

Product Description:

Our aftermarket Caterpillar CapSure Bucket Tooth is hammer‑free retention ground‑engaging tip specially designed to perfectly match Caterpillar J‑series bucket adapters. CapSure upgrades traditional side‑pin J‑series system with rotary retainer locking structure, no heavy hammer required for installation and removal, only basic hand tools for 180‑degree rotation locking operation. Multiple tooth profiles including general‑purpose, heavy‑duty, penetration‑plus and high‑abrasion are available. Cast from high‑strength alloy steel with professional heat‑treatment, these tips wear into self‑sharpening cutting edge during operation. Precise manufacturing ensures full interchangeability with OEM J‑series adapters covering J250, J300, J350,J400, J450,J550, J600,J700,J800 sizes. Widely applied on Caterpillar excavators and wheel loaders for general excavation, sand‑gravel aggregate, weathered fractured rock and mine overburden removal.

End users just need to select proper CapSure tooth profile according to site material: general‑purpose for earth‑aggregate; heavy‑duty for mixed earth‑rock; penetration‑plus for compacted overburden; high‑abrasion for abrasive sand‑rich ground. All fit Caterpillar J‑series weld‑on bucket adapters.We execute strict quality control with dimensional inspection and hardness testing on every batch – ensuring consistent performance order after order.Supporting complete spare parts matching: bucket teeth, adapters, tooth pins, retainer clips, side cutters, customers can purchase matched accessories in one order to save procurement time.Flexible purchasing policy: support full container bulk order and small trial order, suitable for large engineering wholesalers and local repair shops respectively.

Part number Alternative number Description
4592180 459-2180 Penetration Plus
4592182 459-2182 Extra Duty/Heavy Duty Bucket Teeth- Capsure
4592184 459-2184 Heavy Penetration- Capsure
4592186 459-2186 Heavy Abrasion- Capsure
1433114 143-3114 Weld-On J600 Two Strap Adapter-22.5°/15°
1433115 143-3115 Weld-On J600 Two Strap Adapter-R-22.5°/15°
1433116 143-3116 Weld-On J600 Two Strap Adapter-L-22.5°/15°
1865384 186-5384 Weld-On J600 Two Strap Adapter-22.5°/15°-Arm
1865385 186-5385 Weld-On J600 Two Strap Adapter-R-22.5°/15°-Arm
1865386 186-5386 Weld-On J600 Two Strap Adapter-L-22.5°/15°-Arm
1198604 119-8604 Weld-On J600 Two Strap Adapter-22.5°/15°
1198605 119-8605 Weld-On J600 Two Strap Adapter-R-22.5°/15°
1198606 119-8606 Weld-On J600 Two Strap Adapter-L-22.5°/15°
1198607 119-8607 Weld-On J600 Two Strap Adapter-22.5°/15°-Arm
1198608 119-8608 Weld-On J600 Two Strap Adapter-R-22.5°/15°-Arm
1198609 119-8609 Weld-On J600 Two Strap Adapter-L-22.5°/15°-Arm
