Products information 1)Material: High chromium white iron with a mild steel weldable backing plate 1)Surface: grey/silver metallic or as your request 2)Hardness: 63-65HRC 3)Technique: casting , adopt vacuum brazed laminated 5) Package: strong plywood crate 6) Application : used to prevent wear in localised trouble spots on heavy earth moving equipment, particularly on construction and mining buckets.

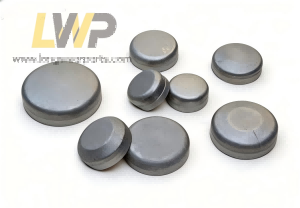

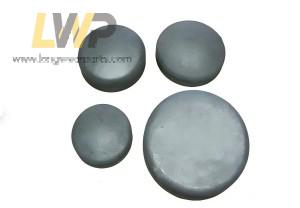

Caterpillar Wear Buttons are designed specifically for easy and adaptive installation onto a wide range of wear problem areas.Very easy to use, no pre or post heating when welding. Available in diameters from 60mm up to 150mm. Develop your own layout and pattern to suit your particular wear protection solution.
Long wear parts Wear Buttons can be well used in conjunction with Chocky Bars, Wear Plates or individually to provide protection or security under the toughest impact and wear abrasion circumstances.
Part No
Alternative number
Description
Diameter
Thickness
280-4092
2804092
2.5 inch Wear Buttons
64
22
280-4093
2804093
3.5 inch Wear Buttons
89
29
280-4094
2804094
4.5 inch Wear Buttons
114
33
280-4095
2804095
6.0 inch Wear Buttons
152
35
