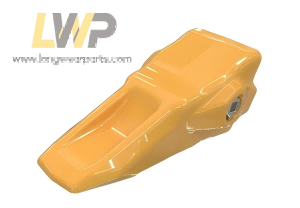

Caterpillar Advanced bucket tooth/bucket tip 505-3996/368-3791/368-3867

Products information
1) Material: Low alloy steel
2) Surface: Standard yellow or as your request
3) Hardness: 480-520 HBW
4) Impact Strength: ≥18J (at 25°C)
5) Package: packed in plywood cases
6) Application :used in Excavator buckets, Loader bucekts,Diggers,Rippers to  efficiently dig, trench, and break hard ground.

Product Description:

Long wear parts@ supply high quality Caterpillar advansys Heavy Duty Tooth & Caterpillar advansys Penetration Long Life Tooth. Our Caterpillar Bucket Teeth are designed for improved performance and wear life and are the ideal choice for all operators looking for quality and value. We can supply you various bucket teeth for full series , include Caterpillar J-series , K-series , A-series and so on.We can provide convenient one-stop service to improve your procurement efficiency.

Our aftermarket Caterpillar advansys Heavy Duty Tooth is robust general heavy‑duty ground engaging tool adopting Cat Advansys CapSure hammer‑free half‑turn twist‑lock retention system. It features thick body geometry with significantly increased wear‑metal volume, balanced self‑sharpening profile, excellent medium‑to‑high impact resistance and good abrasion performance. The heavy duty teeth are optimized for general heavy‑duty excavation, material loading, crushed rock, aggregate stockpile handling and medium‑impact quarry conditions. Larger wear reserve extends service intervals. Not ideal for ultra‑high‑abrasion granite or maximum‑penetration requirements. Choose Heavy Abrasion Tooth for high‑abrasion rock, or Penetration Long Life Tooth when penetration performance is prioritized.

Our aftermarket Caterpillar advansys Penetration Long Life Tooth is high‑performance penetrator‑style ground engaging tool built on Advansys CapSure hammer‑free twist‑lock retention system. Slim tapered penetrating geometry with extra concentrated wear‑metal reserve at nose section delivers sharp ground penetration together with extended service life. It maintains self‑sharpening cutting edge throughout full wear cycle. This penetration long life teeth are optimized for heavily compacted hard soil, heavy clay, frozen ground, shale and moderately abrasive fractured rock. Slim nose cuts rapidly into dense material to lower digging resistance and improve machine cycle efficiency, while extra wear reserve prolongs working hours between replacements.

Send us your machine model, ground condition, and estimated annual hours, and we will recommend the most cost-effective tooth configuration for your site. Quality, consistency, and on-time delivery are our promises. Long Wear parts@ will be your best choice of Bucket teeth/ GET parts.

Series Part number Alternative number Description
A80 5053982 505-3982 Heavy Duty Tooth
A90 5053996 505-3996 Heavy Duty Tooth
A100 5054002 505-4002 Heavy Duty Tooth
A110 5054012 505-4012 Heavy Duty Tooth
A130 3683791 368-3791 Heavy Duty Tooth
A150 3683786 368-3786 Heavy Duty Tooth
A170 3683867 368-3867 Heavy Duty Tooth
A200 3854814 385-4814 Heavy Duty Tooth
A80 5054082 505-4082 Penetration Long Life Tooth (ARM)
A90 5054092 505-4092 Penetration Long Life Tooth (ARM)
A100 5054102 505-4102 Penetration Long Life Tooth (ARM)
A110 5054112 505-4112 Penetration Long Life Tooth (ARM)
A130 3683858 368-3858 Penetration Long Life Tooth (ARM)
A150 3683874 368-3874 Penetration Long Life Tooth (ARM)
A170 3876866 387-6866 Penetration Long Life Tooth (ARM)
A200 3876868 387-6868 Penetration Long Life Tooth (ARM)
